    2015+ Hilux 3" Front End kit

    Tough Dog Adjustable Front Struts / coils
    Your Price:
    $ 1,936.00
    SKU:
    SR-HIL15-3FEK
    Brand
    Weight:
    101.00 KGS
    Shipping:
    Calculated at Checkout
    Current Stock:

    The Snake Racing Front add on Suspension 3" (75mm) Lift Kit is designed to lift the front of your Toyota 2015+ Hilux.

    Giving you lift and clearance for 33" tyres (with the correct rim size /offset) this kit has all the options and off road ability to make any 2015+ Hilux owner smile.

    This is the must have kit if you have a Bull Bar and/or Winch fitted.

    Our Front add on Lift Kit is supplied with all the necessity parts to cope with the extra demand heavy front end accessories has on your suspension.

    Upgrade to Pre-assembled, save time and money on your install and get NEW strut top hats!

    The 3 inch Front add on Lift Kit includes heavy duty Front Tough Dog lifted springs, Front Tough Dog foam cell struts and an option to add front Braided Brake Lines (recommended for fitting larger tyres) and a Drop Down Diff Kit (recommended for any 3 inch front lift).

    Choose the ideal coil spring Medium Duty (for trucks fitted with alloy and/or stock bars) or Heavy Duty (for trucks fitted with steel bars and winches).

    If you plan to install a 33" tyre (285/75) or bigger we recommend adding Greasable Adjustable upper control arms. This will improve wheel clearance to the firewall and allow more unbound wheel travel all while offering maximum wheel alignment options.

    An easy bolt on kit that comes complete with all fitting hardware studs, washers and nuts required for lifting any 2015+ Hilux.

    Choose the right coil spring rate options for your Hilux

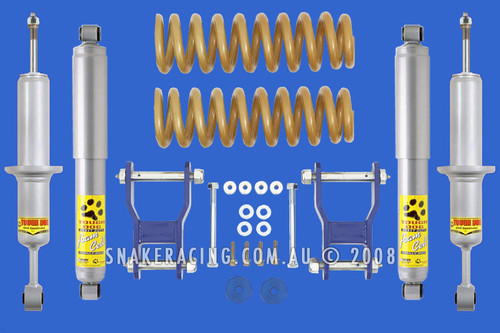

    Parts List

    • 2 x Tough Dog Front Struts
    • 2 x Tough Dog Coil Springs

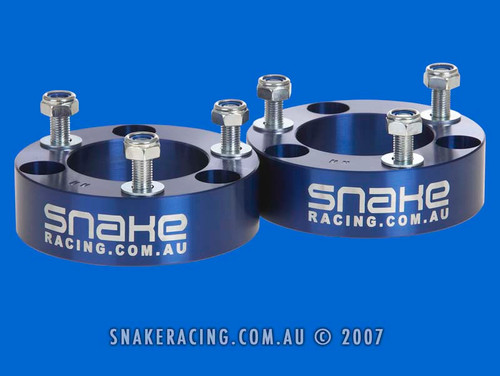

    • 2 x Snake Racing Billet Alloy Strut Spacers (Australian Made!)

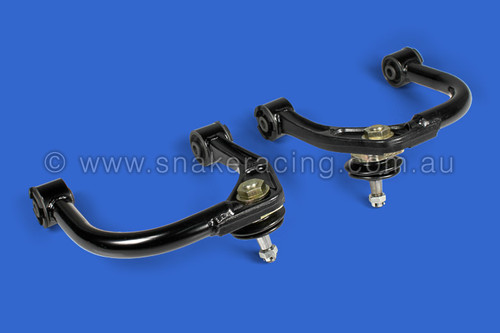

    • Adjustable upper control arms - recommended if installing 285/75 tyres

    Optional Parts

    • Snake Racing Front Braided Brake Line Kit (Australian Made!)

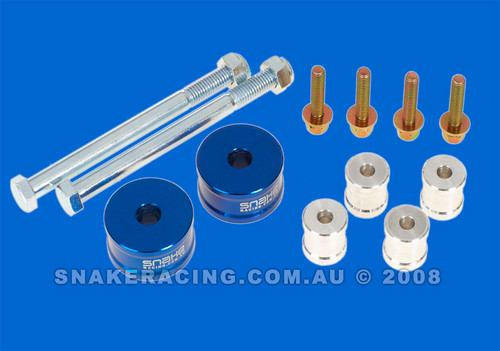

    • Snake Racing Drop Down Diff Kit (Australian Made!)
    • Pre-assembled struts

    Coil Spring Option

    • Medium Duty coils - no bull bar
    • Heavy Duty coils - Bull bar / Winch
    Note; vehicle requires wheel alignment after installation of this suspension kit.
